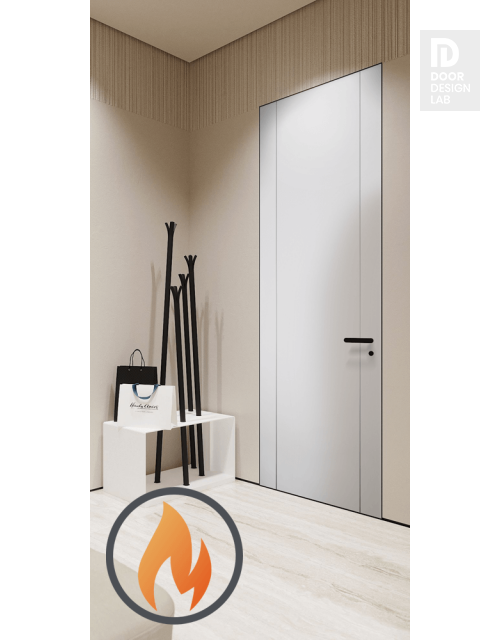

20 Min Fire Rated 2U Snow White Frameless Belldinni Modern Interior Door
Modern design: fireproof and heat insulation wood door with visible jambs can withstand naked fire and smoke for 20 minutes. A minimalistic slab design, four horizontal aluminum strips, and universal shade make the door look harmonious in any interior.
Door construction: solid frame hardwood and solid particle board provide durability and long service life. The slab is covered in a specific fire seal Flexilodice from all sides. As an additional protection from smoke, you can add an automatic door bottom. The slab thickness is 1-3/4". Can be a nonstandard size.
Door filling: Solid core is an innovative eco-friendly wood fiber material responsible for soundproofing and good isolation.
NFPA 252: 20 min Fire Rated complies with NFPA 252 (20 Minute Door with Hose Stream Positive Pressure — NFPA 252 UL 10C CAN/ULC S104).
Hardware: the set of hardware comprises 4 hinges. Doors can have American standard pre-cut and pre-cut for a deadbolt.
High-quality finish:the slab is coated with polypropylene Snow White, an environmentally friendly material resistant to moisture, scratches, and sunlight, so it does not lose its original shade. The door with a PP finish is easy to care for.
Warranty: 2 years.
Frameless Doors Installation Guide - Belldinni Inc
In this 7-minute video, you'll find complete instructions on installing frameless doors yourself, from preparing the necessary tools to assembling the door frame, slab, and hardware. We've also collected helpful tips on when to finish the floor and walls.
Frameless Doors (Reverse) Installation Guide - Belldinni Inc
Clear and step-by-step instructions for assembling and installing Belldinni frameless doors (reverse) are presented in this video. Our specialists share all the relevant information, including the correct renovation sequence.
Frame and Wall Painting Guide for Frameless Primed Doors by Belldinni Inc
Our experts prepared detailed instructions (6-minute video) that show the entire process, from preparing all the necessary tools to plastering and painting the wall and door.
| Type of Configuration | Frameless doors |
| Door series | Fire Rated |
| Type of Finish | Polypropylene (PP) |
| Stock Colors | Bianco Noble |
| Slab Construction | Solid Frame, Solid Core |

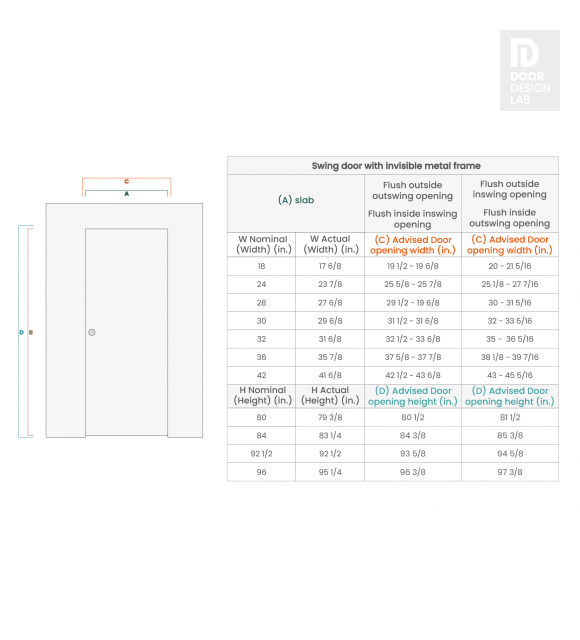

| Stock Height | 79 3/8'', 83 1/4'', 92 1/2", 95 1/4'' |
| Stock Width | 17 13/16'', 23 13/16'', 27 13/16'', 29 13/16'', 31 13/16'', 35 13/16'' |
| Slab Thickness | 1 3/4'' |
| Frame construction | Adjustable Split-type Concealed Frame |
| Frame Material | Cold rolled galvanized steel (require sanding and painting) |
| Jamb Steel Thickness | 3/64" |
| Extension | no |
| Hinges | 4-9/16'' — 5-1/4'' |
| Possibility to install a Smart Sweep | yes |
| Thickness of the wall covered by jamb | Regular: 4 3/8” - 4 13/16"; 4 5/8” - 5"; 6 7/16” - 6 13/16"; 6 7/8” - 7" Reverse: 4 3/8” - 4 13/16"; 4 5/8” - 5"; 4 7/8" - 5 1/4"; 6 7/16” - 6 13/16“; 6 7/8 “ - 7” |
| Jamb construstion | No seal |
