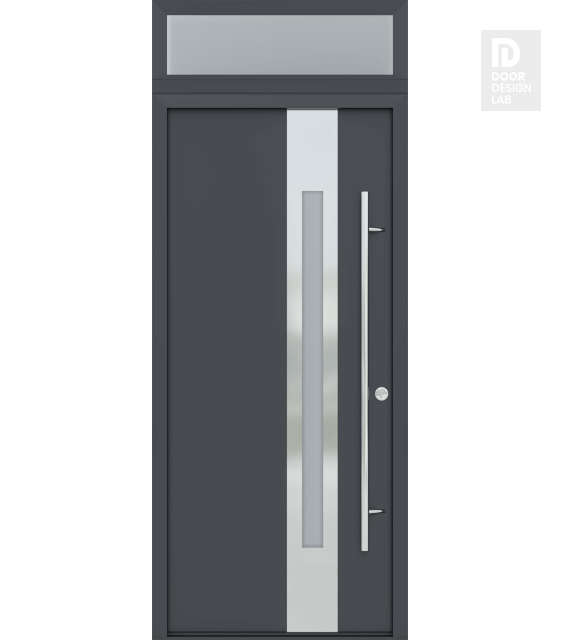

MODERN FRONT STEEL DOOR ZEPHYR ANTRACIT/WHITE 37 7/16" X 95 11/16" LHI + TRANSOM
| Application | Exterior |
| Swing direction | Right hand inswing or left hand inswing |
| Exterior | |
| Sound insulation | 37 dB |
| Resistance to heat transmission | Corresponds to class T2 (0.65)m2*C/W |

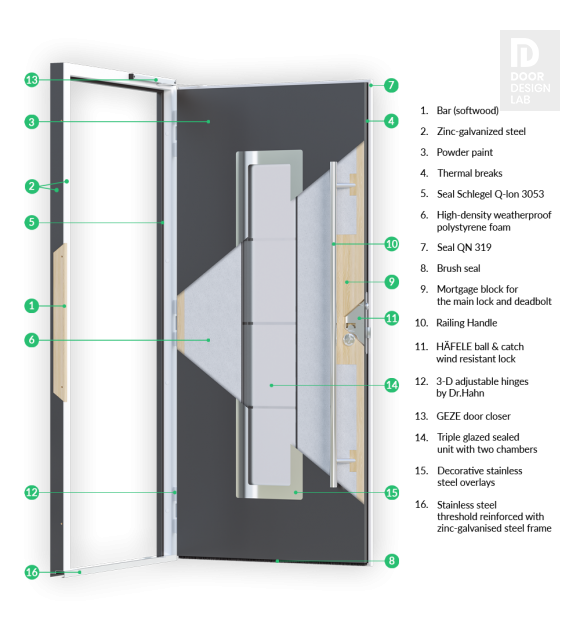

| Slab | |
| Slab size | 37 7/16" X 81 11/16" |
| Slab Thickness | 2 1/16" |
| Steel Thickness | 3/64" |
| Material | Zinc-galvanized steel |
| Thermal insulation | 2 thermal breaks, high-density polystyrene foam, glued laminated bar |
| Thermal break technology | A break in the steel box eliminates the cold bridge |
| Sealing | Double loop seal |
| Frame | |
| Frame height | 81 11/16" |
| Frame width | 37 7/16" |
| Frame material | Zinc-galvanized steel |
| Sealing | Schlegel Polyurethane Q-lon Seal |
| Door sill | Stainless steel threshold reinforced with zinc-galvanised steel frame |
| Casing | |
| Material | Zinc-galvanized steel |
| Exterior finishing | |
| Color | Anthracite (RAL7016) / Brown (RAL 8019) / Black (RAL 9005) |
| Type | Extra durable painting with reliable protection from UV rays |
| Glass insert | |
| Glass | Tempered, safety, translucent frosted glass with silk-screen printing with ceramic inks. |
| Design | Triple glazed sealed unit with two chambers |
| Overall thickness | 2" (50 mm) |
| Glass quality | Tempered glass on both door sides |
| Interior finishing | White (RAL 9003) |
| Hardware | |

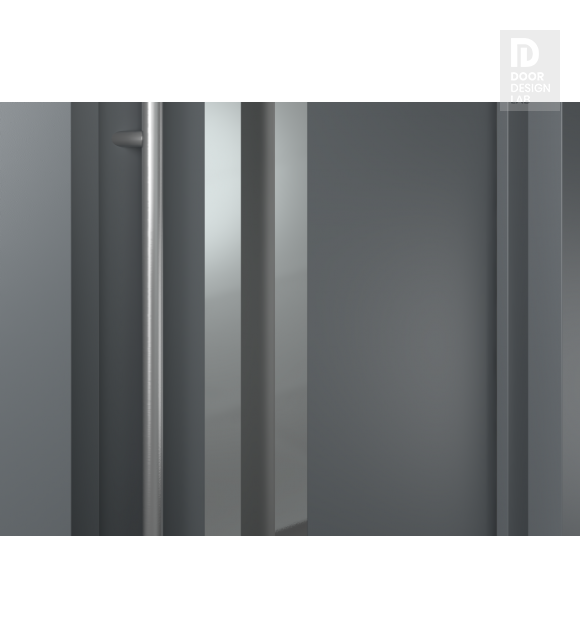

| Exterior handle | Railing type |
| Interior handle | Railing type |

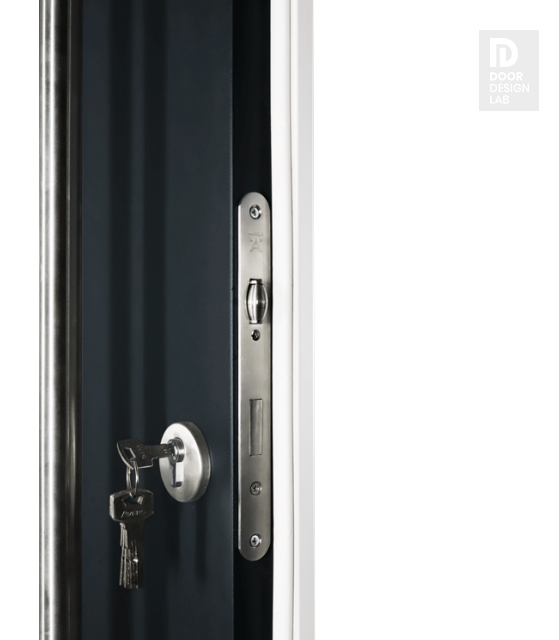

| Lock/cover, plates/cylinder | Apecs T-52-NIS |

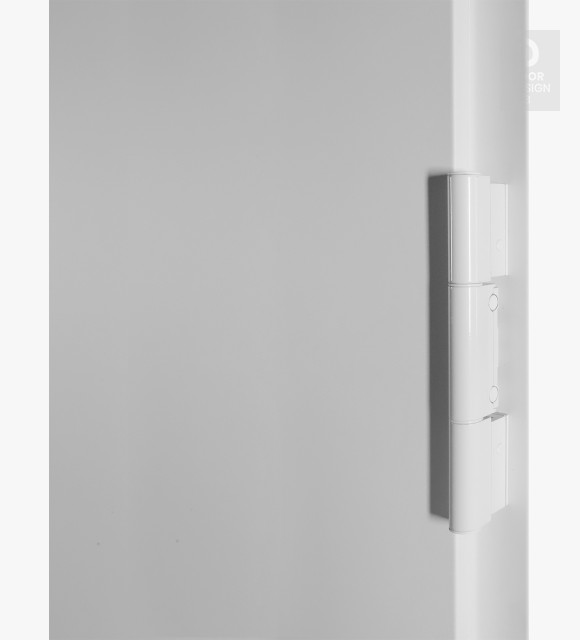

| Hinges type | Hinges with 3d-adjustment by Dr.Hahn Germany |
| Note | This door is not hurricane certified |

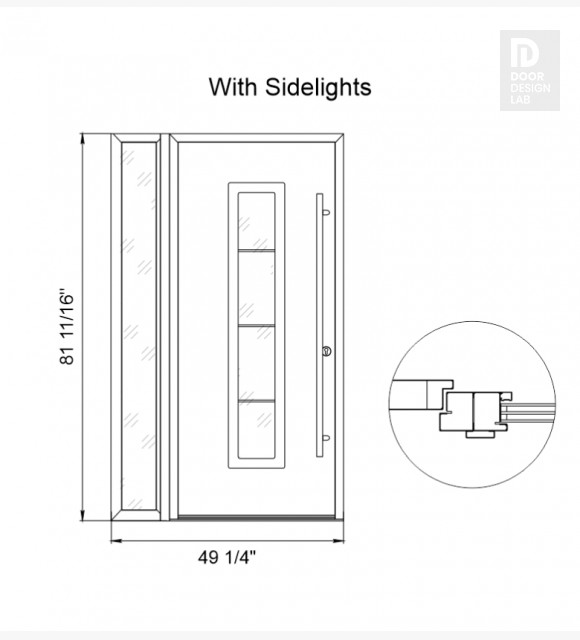

| Sidelight | |
| Glass type | Tempered, safety, translucent frosted glass with silk-screen printing with ceramic inks. |
| Glass construction | Triple glazed sealed unit with two chambers. |
| Width | 11 13/16" |
| Height | 81 11/16" |
| Thickness with frame | 2 43/64" (68 mm) |
| Glass thickness | 1 17/64" (32 mm) |
| Frame material | Glued laminated timber with thermal brake |
| Transom | |
| Glass type | Tempered, safety, translucent frosted glass with silk-screen printing with ceramic inks. |
| Glass construction | Triple glazed sealed unit with two chambers. |
| Width | 14 1/64" |
| Length: | Depending on the number of sidelights: 37 7/16" (no sidelights), 49 1/4" (one sidelight), 61 1/16" (two sidelights) |
| Thickness with frame | 2 43/64" (68 mm) |
| Glass thickness | 1 17/64" (32 mm) |
| Frame material | Glued laminated timber with thermal brake |
| Warranty | 24 months |
| Packaging | Pre-hung unit ready for installation. Factory packing on pallet |
